BI - Planar Conveyor
A widely used overhead conveyor for load capacity up to 100kg

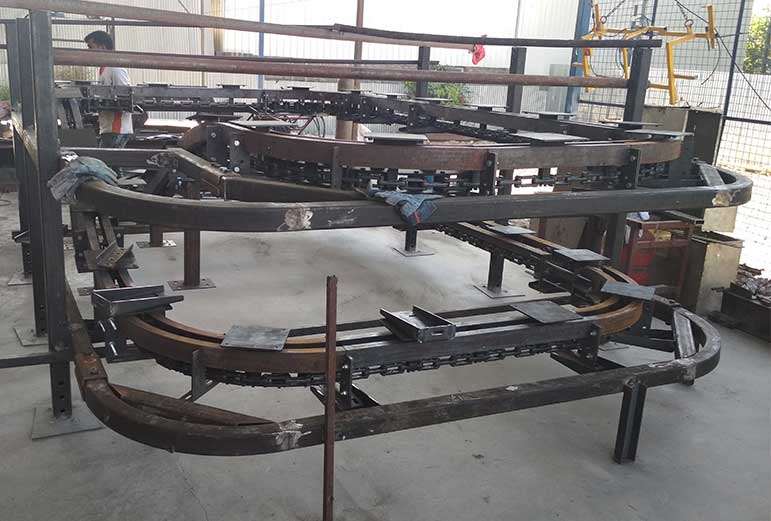

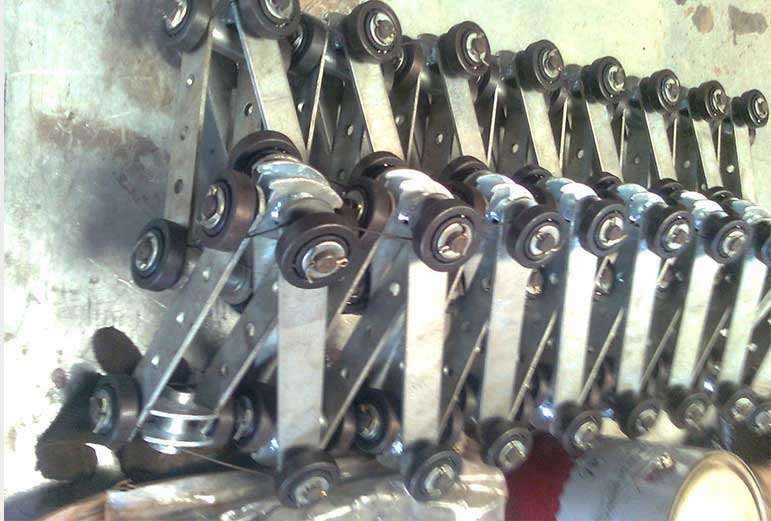

Four Wheel Bi Planar Chain Overhead Conveyor are highly durable and available in different shapes and sizes according to the customization demand. The chain is available in. 6”, 8”, 10”, 12” pitch. Minimum component hooking pitch is double

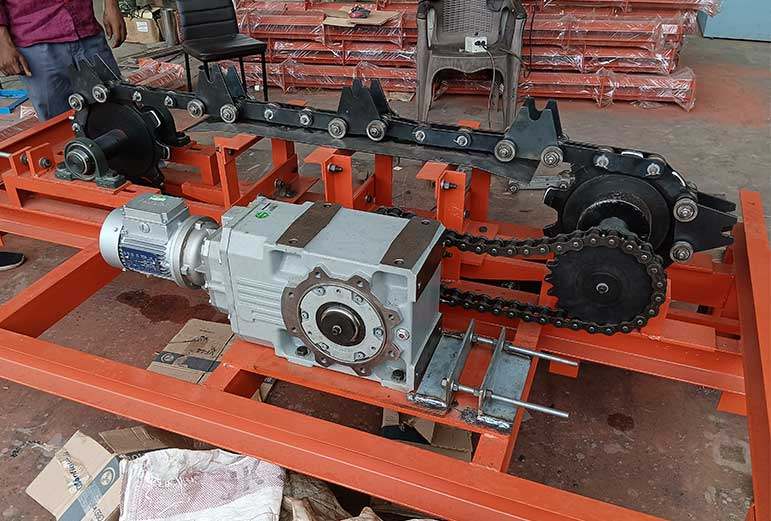

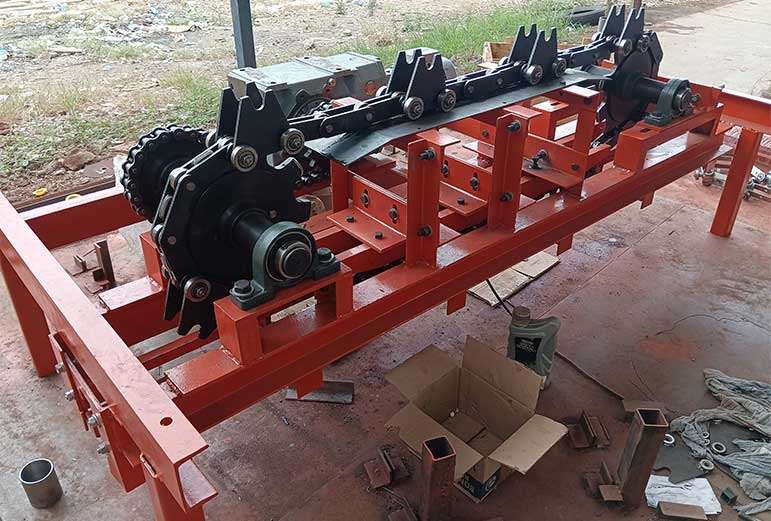

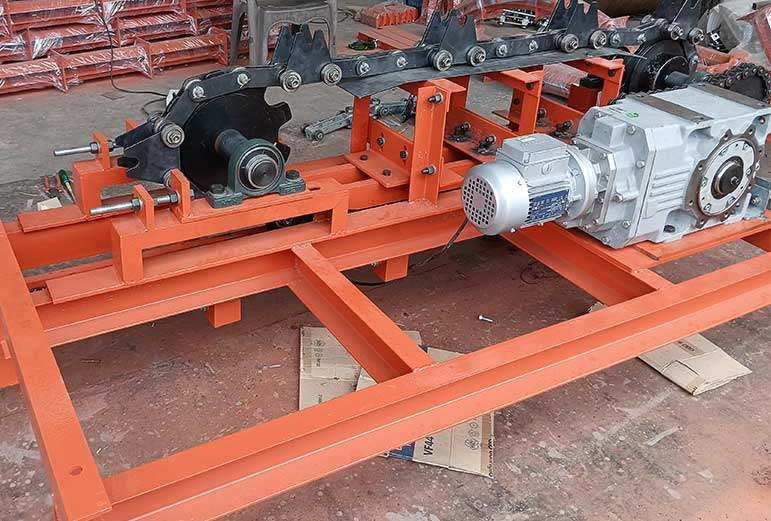

Drive Unit: Sprocket type/caterpillar type is available,
| Specification | 6” | 8” | 10” | 12” |
|---|---|---|---|---|
| Hooking Pitch | 300 mm | 400 mm | 500 mm | 600 mm |
| Capacity (KG) - Single Point Hooking | 50-55 | 50-55 | 50-55 | 50-55 |
| Load Bar Arrangement Hooking Pitch | 600 mm | 800 mm | 1000 mm | 1200 mm |
| Capacity (KG) - With Load Bar Arrangement | 100-110 | 100-110 | 100-110 | 100-110 |
Key Applications and Industries
- Parts handling,
- assembly lines,
- painting processes (spray painting, dip painting, powder coating),
- surface finishing.
- Logistics and Distribution Moving materials within warehouses,
- handling components from storage to assembly lines,
- Leather, ceramics,
- LPG filling,
- household appliances,
- breweries, tea and coffee,
- woodworking,
- forging,
- casting,
- metal stamping,
- packaging, etc.
